ساعه قياس صغيره (بيبى تاست) حتى 0.8 مم دقه 0.01 مم

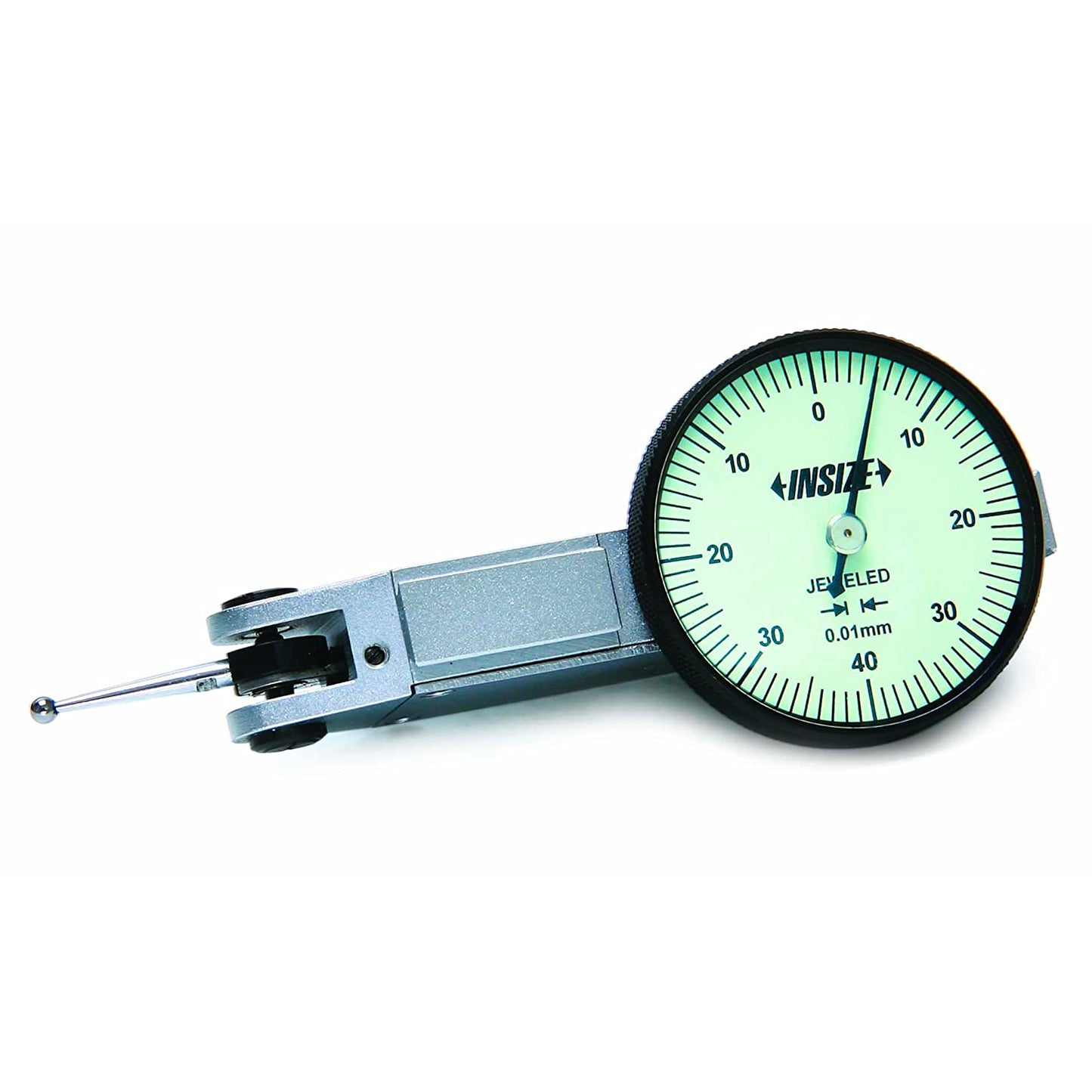

2380-08 INSIZE Metric Dial Test Indicator: 0.8mm

The INSIZE 2380-08 Metric Dial Test Indicator has the following specifications:

• Range: 0.8mm
• Accuracy: 13µm
• Hysteresis: 3µm
• Graduation: 0.01mm
• Dial reading: 0-40-0
• A: Ø30mm
• L: 13.5mm

Features:

• Meet DIN2270 (except2380-02, 2381-02, 2381-021)
• Jeweled bearing
• Carbide contact point
• Two measuring directions
• Anti magnetic body
• Supplied with two clamps: diameter Ø4mm and Ø8mm
• Optional accessory: styli (page 171)
